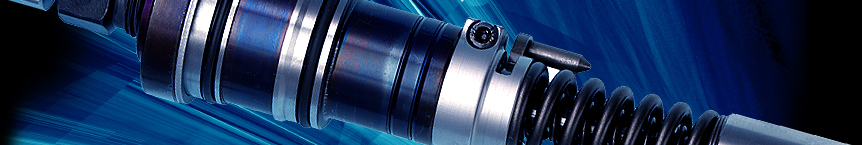

Stanadyne's Integrated Fuel System contains an integrated unit pump and injector with a roller cam follower. The unit pump is capable of pressures up to 1200 bar with a maximum fuel delivery of 100mm³ stroke at 3600 engine rpm. The injector is our Compact Pencil Nozzle (CPN) that operates at pressures up to 875 bar.

FEATURES

• 1200 bar pumping pressure
• 100mm³ injection fuel delivery
• 12 engine degrees light load advance
• Optional cold advance: 10 engine degrees
• Optional speed advance: 10 engine degrees
• Rated speeds up to 3600 engine RPM
• Maximum over speed: 4000 engine RPM
• -40 to 125°C operating temperature
